0.1.6 Remote Execution (2026-07-17)ΒΆ

Remote execution lets the main PC keep the simulation truth model local while selected ADCS components, such as the controller or estimators, run on a Raspberry Pi over XML-RPC. This mirrors the Tutorial 8 setup and makes it easy to check distributed workflows before moving to hardware-in-the-loop style testing.

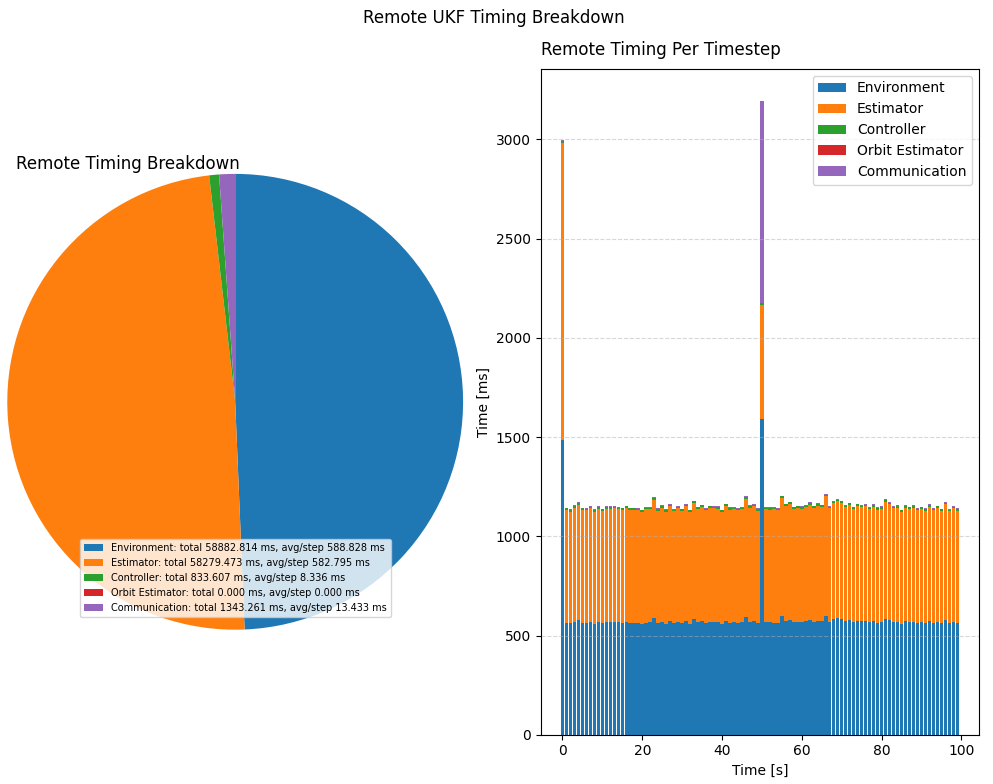

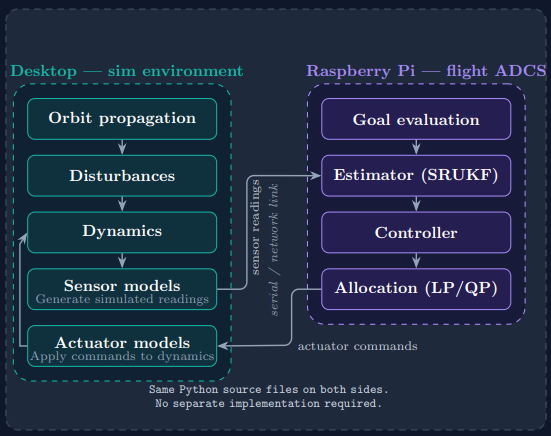

Remote execution block diagram. Remote execution timing report.

See also Tutorial 8: Remote Execution for the full setup walkthrough and API documentation for the underlying interfaces.

An abbreviated example from the tutorial is shown below:

remote_host = os.getenv("ADCS_REMOTE_HOST", "127.0.0.1")
remote_port = int(os.getenv("ADCS_REMOTE_PORT", "5000"))

results = ADCS.simulate_remote(
    x=x_0,
    satellite=real_sat,
    os0=os0,
    controller=controller,
    goal=goal,
    dt=1.0,
    tf=1000.0,
    remote=ADCS.remote.RemoteSimulationConfig(
        controller=ADCS.remote.ComponentLocation.REMOTE,
        estimator=ADCS.remote.ComponentLocation.LOCAL,
        orbit_estimator=ADCS.remote.ComponentLocation.LOCAL,
        host=remote_host,
        port=remote_port,
        timeout_s=0.5,
        retries=2,
    ),
)
