Generalized Attitude Determination and Control System¶
A Python-first framework for simulating spacecraft attitude dynamics, estimation, and control in orbit.
Generalized ADCS is designed for aerospace students, researchers, and engineers who want a flexible, transparent ADCS simulation environment without black-box solvers.
Latest Release Notes¶
The age of trajectory optimization is upon us!

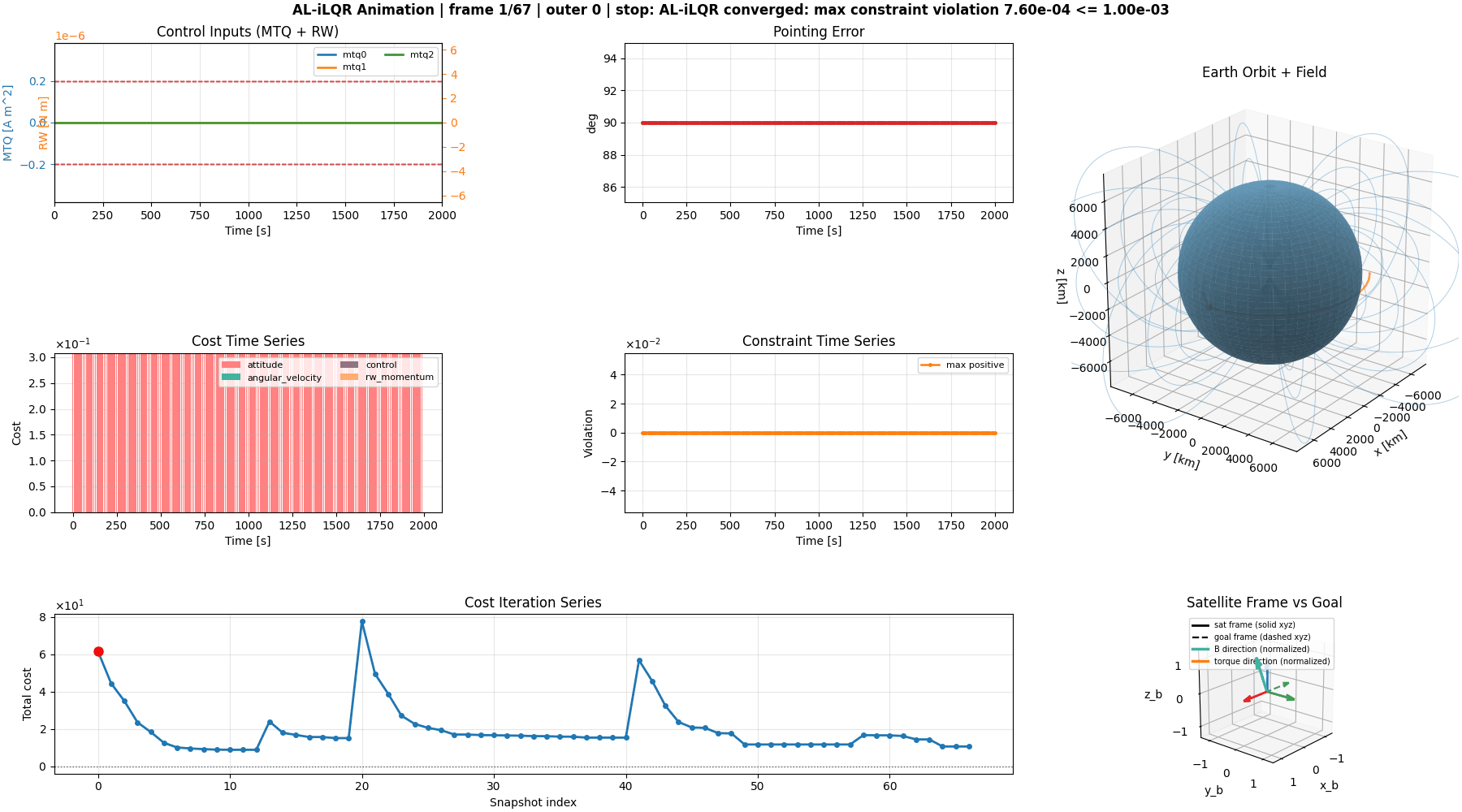

Generalized_ADCS now includes two optional add-ons: Trajectory Planner and SALTRO. Trajectory optimization enables more aggressive retargeting maneuvers than simple point-to-point commands.
What you can do with Generalized ADCS¶
Simulate rigid-body spacecraft attitude dynamics
Combine reaction wheels, magnetorquers, and sensors
Implement and test custom controllers and estimators
Run closed-loop simulations using orbital states
Visualize pointing performance and control effort
import ADCS as ADCS
import numpy as np
import matplotlib.pyplot as plt
acts = [ADCS.RW(axis=np.array([1, 0, 0]), max_torque=0.0023, J=5.7e-6, h=0.0, h_max=0.0036)]
acts += [ADCS.MTQ(axis, max_torque=0.2) for axis in np.eye(3)]
sens = [ADCS.MTM(axis) for axis in np.eye(3)]
satellite = ADCS.Satellite(mass=10, J_0=np.diag([0.03, 0.03, 0.01]), actuators=acts, sensors=sens, boresight=np.array([0, 0, 1]))
x_0 = np.array([0.01, -0.02, 0.01] + [1, 0, 0, 0] + [0.0]) # w, q, h
controller = ADCS.controller.MTQ_w_RW_LP(est_sat=satellite, p_gain=0.00005, d_gain=0.002, c_gain=0.001, h_target=np.array([0, 0, 0]))
goal = ADCS.goals.Coordinate_Goal(lat=42.36, lon=-71.06, alt=0)
os0 = ADCS.Orbital_State(ephem=ADCS.Ephemeris(),J2000=0.22, R=np.array([5000, 0, 5000]), V=np.array([0, 7.5, 0]))
results = ADCS.simulate(
x=x_0,
satellite=satellite,
controller=controller,
goal=goal,
os0=os0,
dt=1.0,
tf=500.0
)

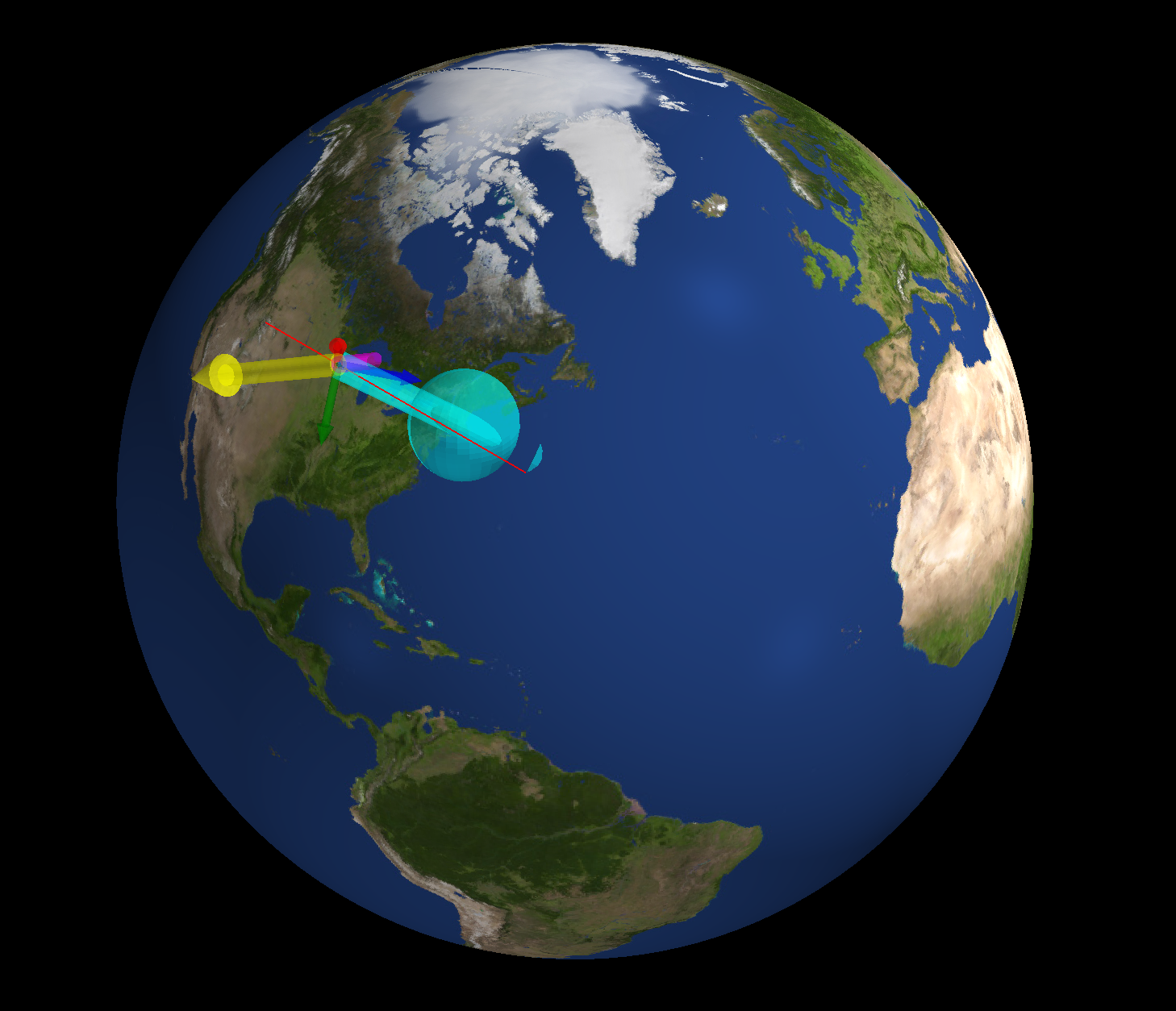

ADCS.plot(
results,
ADCS.plots.AnimationPlot(goal=goal),
layout=(1,1),
title="Underactuated Control Animation",
)
plt.show()
