05: Orbit Estimation¶

CubeSat missions often require precise orbit determination. In this tutorial, we will demonstrate the usage of an EKF orbit estimator with GPS measurements.

For this example, we use the CYGNSS (Cyclone Global Navigation Satellite System) launched by the University of Michigan and the Southwest Research Institute in 2016.

Render of the CYGNSS satellite. (Credit University of Michigan)

Simulation Configuration¶
Component	Description
Sensors	One GPS receiver, with a noise standard deviation of 5 km in position and 0.1 km/s in velocity for the real satellite
Satellite	Mass of 28.9 kg, Inertia Matrix \(J_0 = diag([0.34, 0.27, 0.30]) \, kg \cdot m^{2}\).
Estimated Sensors	One GPS receiver, with a noise standard deviation of 3 km in position and 0.1 km/s in velocity for the estimated satellite
Estimated Satellite	Mass of 28.9 kg, Inertia Matrix \(J_0 = diag([0.34, 0.27, 0.30]) \, kg \cdot m^{2}\).
Orbit Estimator	EKF (Extended Kalman Filter) with tuned initial covariance and process noise matrices.
Orbital State	The initial position and velocity of the spacecraft in orbit.

import ADCS as ADCS
import numpy as np
import matplotlib.pyplot as plt

gps_noise = ADCS.Noise(std_noise=np.array([5, 5, 5, 0.1, 0.1, 0.1]))  # km, km/s
gps = [ADCS.GPS(noise=gps_noise)]
gps_noise = ADCS.Noise(std_noise=np.array([3, 3, 3, 0.1, 0.1, 0.1]))  # km, km/s
est_gps = [ADCS.GPS(noise=gps_noise)]

satellite = ADCS.Satellite(mass=28.9, J_0=np.diag([0.34, 0.27, 0.30]), sensors=gps)
est_satellite = ADCS.EstimatedSatellite(mass=28.9, J_0=np.diag([0.34, 0.27, 0.30]), sensors=est_gps)
x_0 = np.array([0.00023, 0.0, 0.000065, 1, 0, 0, 0])

os0 = ADCS.Orbital_State(ephem=ADCS.Ephemeris(),J2000=0.22, R=np.array([7000, 0, 0]), V=np.array([0, 7.5, 1]))
est_os0 = ADCS.Orbital_State(ephem=ADCS.Ephemeris(),J2000=0.22, R=np.array([5000, 5, -5]), V=np.array([0.1, 4, 1.1]))

P0 = np.diag([500**2.0, 500**2.0, 500**2.0, 0.5**2.0, 0.5**2.0, 0.5**2.0])    # initial covariance
Q0 = np.diag([1, 1, 1, 10, 10, 10])

orbit_estimator = ADCS.Orbit_EKF(est_sat=est_satellite, J2000=0.22, os_hat=os0, P_hat=P0, Q_hat=Q0, dt=20.0)

results = ADCS.simulate(
    x=x_0,
    satellite=satellite,
    orbit_estimator=orbit_estimator,
    os0=os0,
    dt=20.0,
    tf=1000.0
)

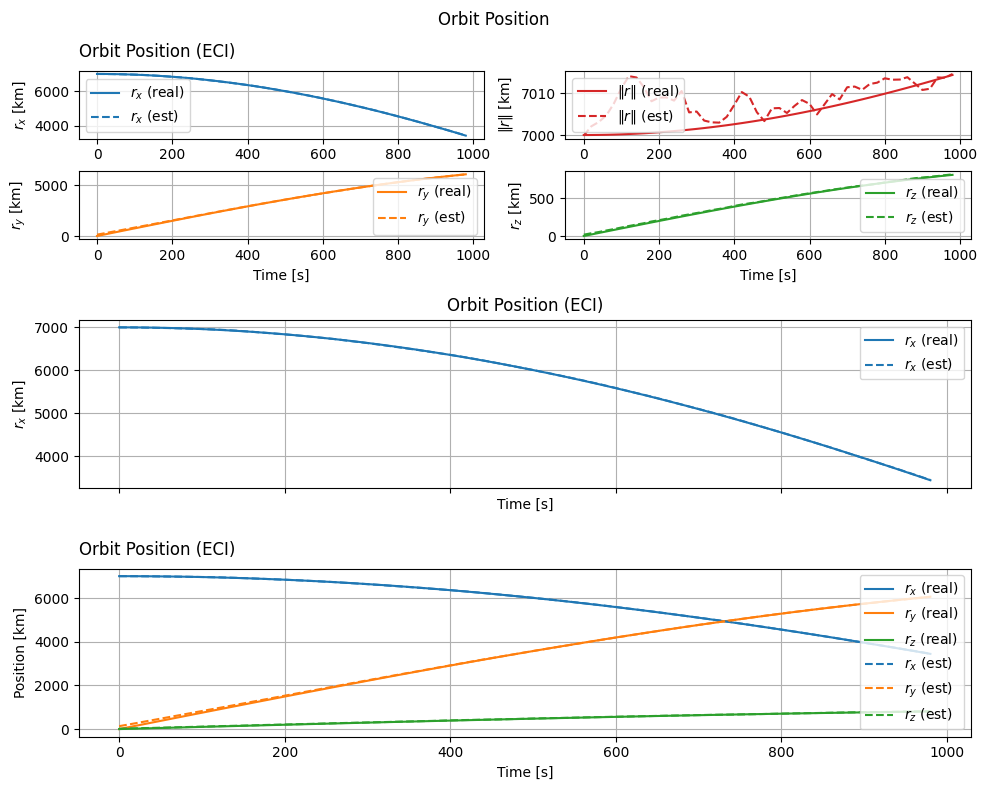

from ADCS.helpers.plot import plot
from ADCS.helpers.plot import OrbitPositionPlot, OrbitPositionPlotSingle, OrbitPositionPlotCombined

plot(
    results,
    OrbitPositionPlot(sources=["real", "estimated"]),
    OrbitPositionPlotSingle(sources=["real", "estimated"], component="x"),
    OrbitPositionPlotCombined(sources=["real", "estimated"]),
    layout=(3,1),
    title="Orbit Position",
)

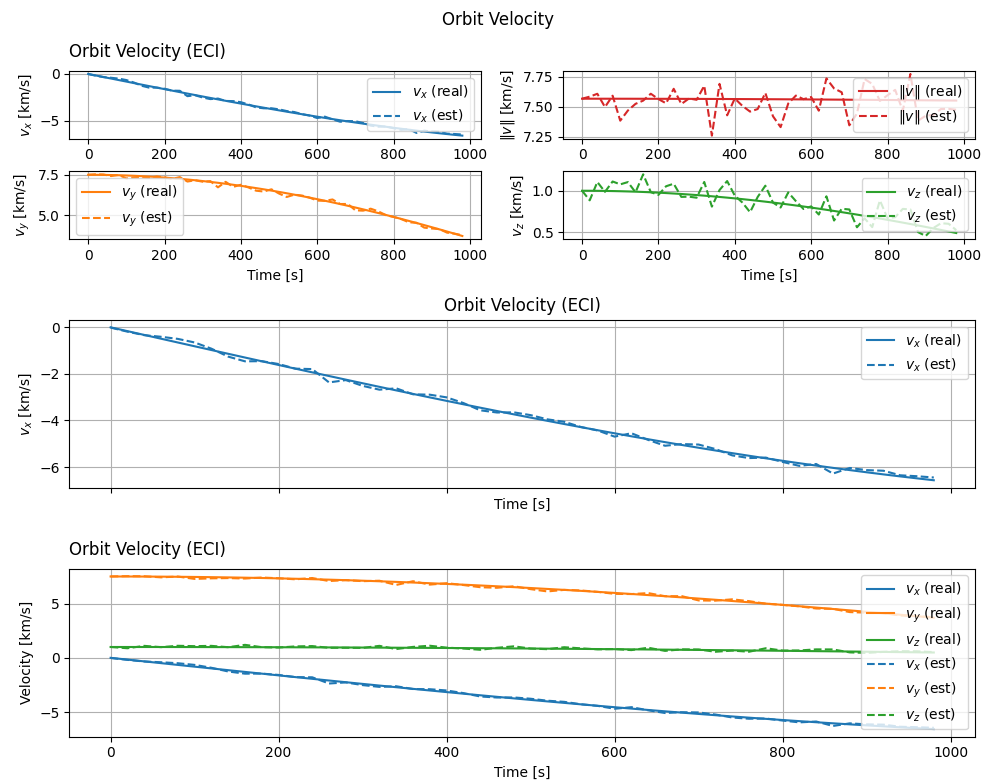

from ADCS.helpers.plot import OrbitVelocityPlot, OrbitVelocityPlotSingle, OrbitVelocityPlotCombined, OrbitPlot

plot(
    results,
    OrbitVelocityPlot(sources=["real", "estimated"]),
    OrbitVelocityPlotSingle(sources=["real", "estimated"], component="x"),
    OrbitVelocityPlotCombined(sources=["real", "estimated"]),
    layout=(3,1),
    title="Orbit Velocity",
)

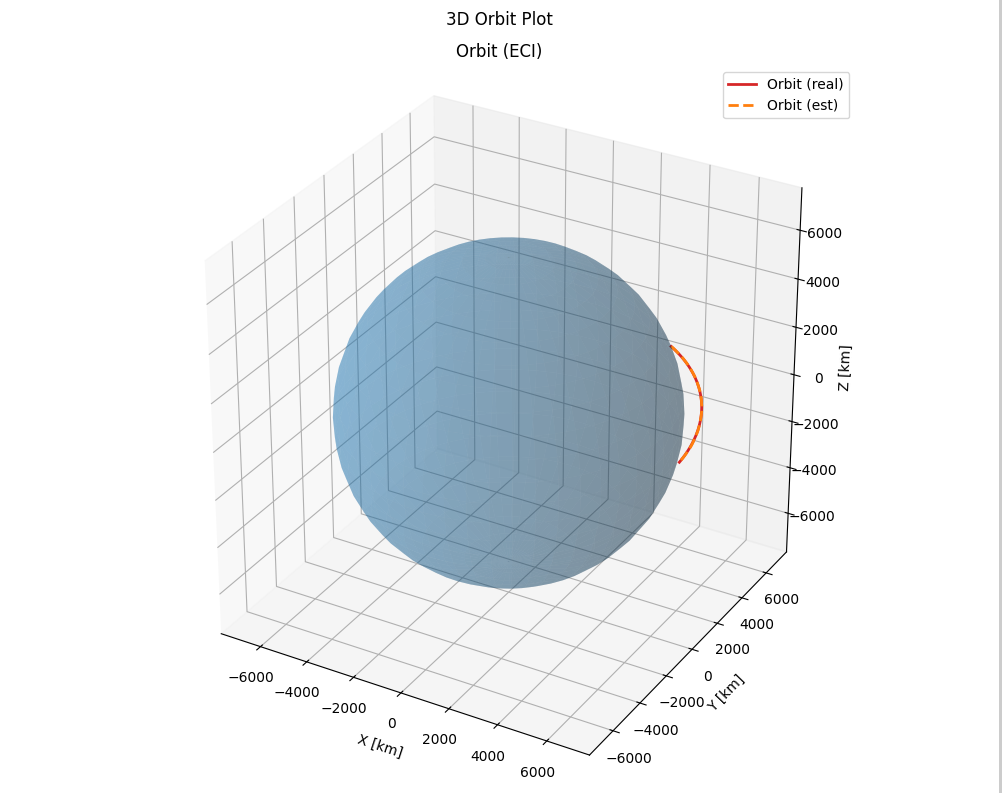

plot(
    results,
    OrbitPlot(sources=["real", "estimated"]),
    layout=(1,1),
    title="3D Orbit Plot",
)

plt.show()

The EKF is able to very accurately estimate the orbit of the satellite using noisy GPS measurements. GPS receivers have come so far that many CubeSat missions do not even require explicit orbit estimators, and just use raw GPS measurements.

Simulation Results¶
